Products

Superior

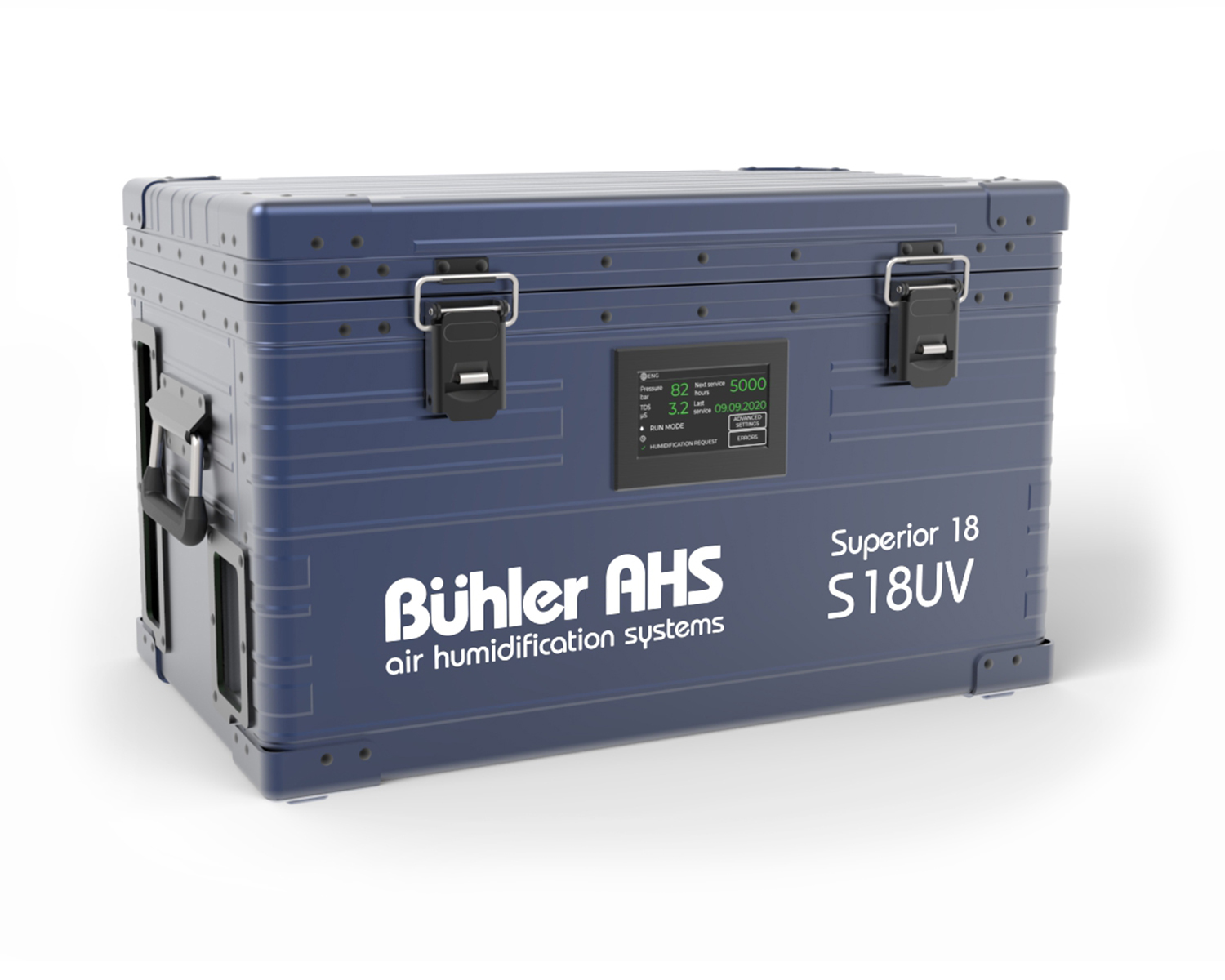

Central module S18UV

With 2-stage reverse osmosis and SEPAMED pump

Buhler-AHS Central module S18U

Key Features:

  • Rated capacity: 4.8 GPH ( 18 LPH )
  • Maximum capacity: 6.4 GPH ( 24 LPH )
  • Number of high-pressure hoselines: 1
  • Output pressure: 500...1200 psi ( 35...82 bar )
  • Power consumption: 600 W
  • Voltage: 230 VAC
  • Housing and inner mechanical parts material: high quality aluminum
  • Dimensions WxDxH, in (mm): 24 x 16 x 13 (600 x 400 x 330)


Advantages:

  • NEW! The lowest noise-level operation, the device is acceptable to be mounted near living areas
  • NEW! Two-stage reverse osmosis, the deepest purification level is achieved
  • NEW! Service interval increased up to 2-3 years
  • NEW! Operation enabled whether with active or passive nozzles
  • NEW! Continuous extensive UV sterilization in the vessel
  • NEW! Regular hydraulic testing of high pressure line
  • NEW! Pressure setting in the range of 500...1200 psi
  • NEW! Touch control panel
  • Microbiological safety - the system totally removes viruses, bacteria and fungus
  • Completely automatic operation
  • Leakage control inside the case and on high pressure line

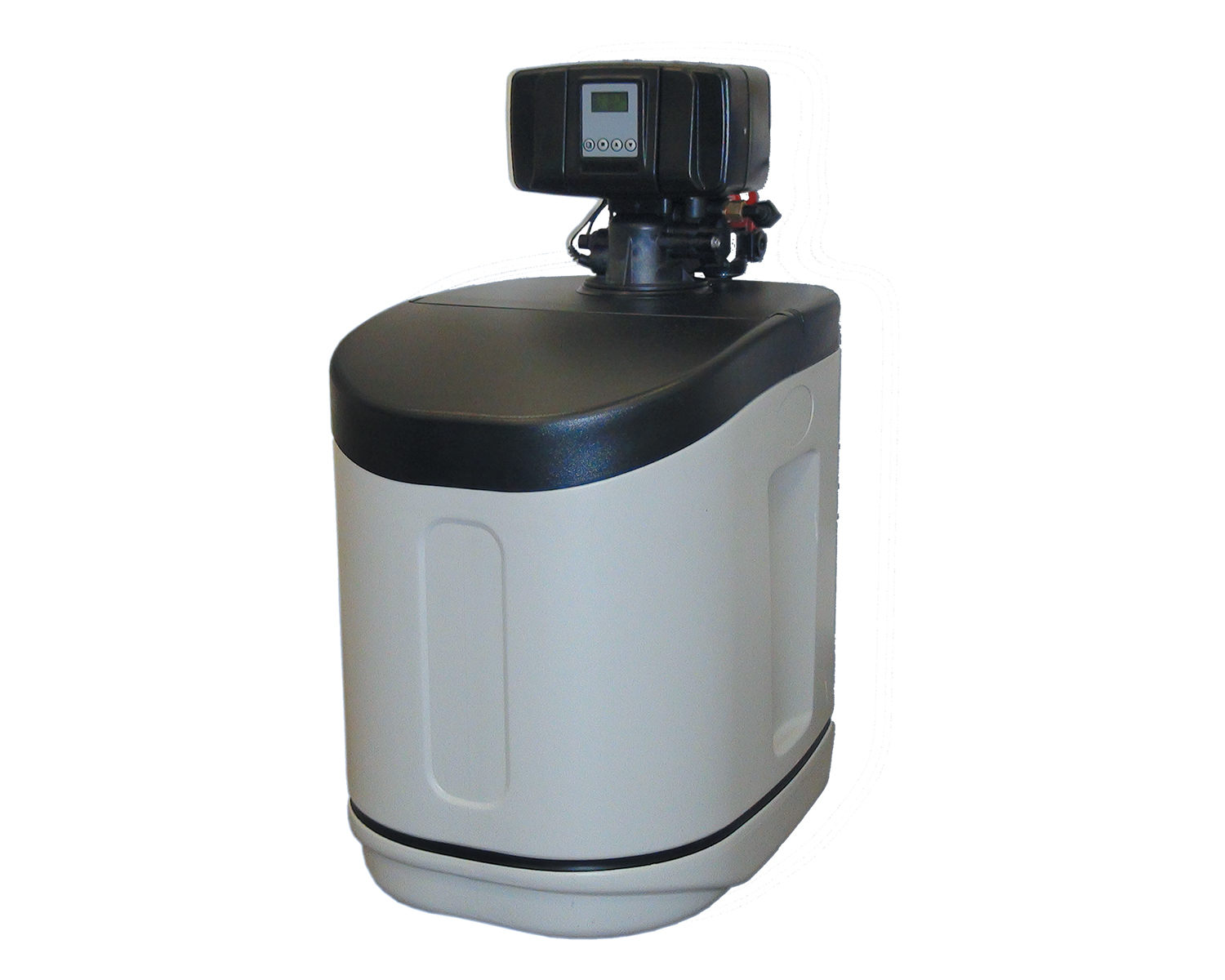

Softener module SM1

For middle hardness water

Buhler-AHS Softener module SM1

Key Features:

  • Maximum clean water capacity: 9.6 GPH ( 36 LPH )
  • Salt capacity: 55 lb ( 25 kg )
  • Inlet pressure: 30...90 psi ( 2...6 bar )
  • Dimensions WxDxH, in (mm): 14 x 24 x 27 ( 350 x 600 x 680 )
  • Power consumption: 6 W
  • Inner tank material: fiberglass
  • Housing material: high-quality plastic
  • Connection: G 1/2" ( 1/2" BSPP )



Advantages:

  • Automatic regeneration (requires periodic salt refilling)
  • Very low power consumption
  • Silent operation, the device is suitable for mounting near living areas
  • Operation ready connector for output to S18UV
  • Equipped with an electronic control module
  • Fully automatic operation
  • Cabinet construction - no extra salt tank
  • For water hardness up to 250 ppm



External ultra-carbon filter UCF700

Required for S18UV

Buhler-AHS External ultra-carbon filter UCF700

Key Features:

  • Chlorine capacity: 700,000 l (200,000 gal)
  • Ultrafiltration class: 0.1 μm
  • Dimensions without bracket and fittings HxD, in (mm): 27 x 8 ( 680 x 200 )
  • Dimensions WxDxH, in (mm): 14 x 24 x 27 ( 350 x 600 x 680 )
  • Connections: inlet G 1/2" ( 1/2" BSPP ), outlet JG 3/8"

Advantages:

  • Ultrafiltration barrier traps bacteria and colloids
  • Very high capacity for chlorine
  • Quick change of the filter element

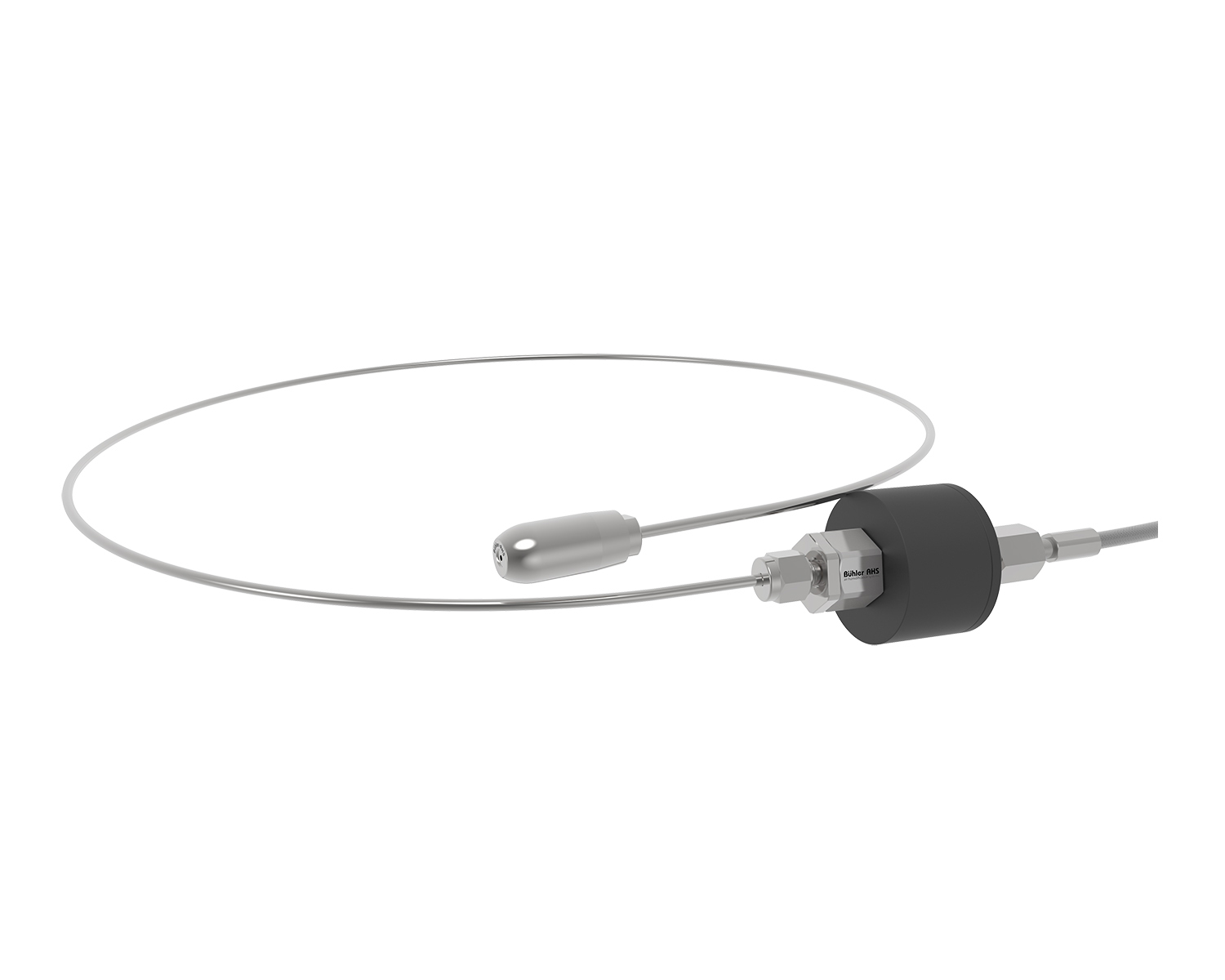

Active nozzle SAN1

Capacity is 0.3 GPH

Buhler-AHS Active nozzle SAN1

Key Features:

  • Capacity: 0.3 GPH ( 1.2 LPH )
  • Built-in stainless steel filter 40 μm
  • Atomizing orifice diameter: 85 μm
  • Droplet size: 10...30 μm
  • Anti-drip valve
  • Control voltage: 20...24 VDC
  • Intermediate tube's length: 26 in
  • Fogging head size DxL, in (mm): 0.55 x 1.42 ( 14 x 36 )
  • Material: body - stainless steel, fogging insert - ruby


Advantages:

  • NEW! Absolutely silent electromagnetic high-pressure TWINCOIL valve
  • NEW! Entirely flow-through construction, no stagnant zones
  • Fogging head's silent operation
  • Anti-drip valve
  • High capacity filter
  • Long life thanks to ruby insert
  • Less visible installation due to the built-in construction

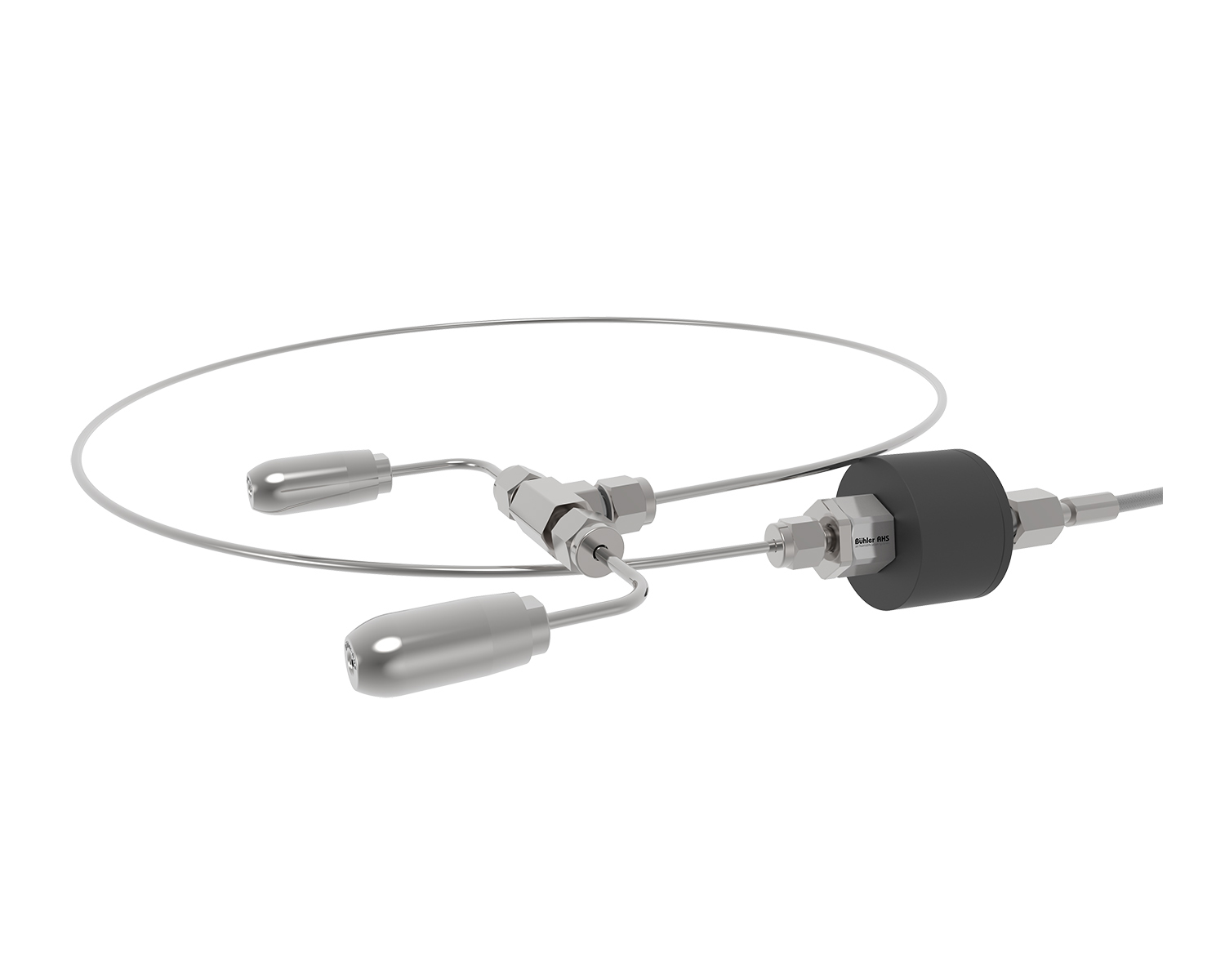

Active nozzle SAN1.2

Capacity is 0.6 GPH

Buhler-AHS Active nozzle SAN1.2

Key Features:

  • Capacity: 0.6 GPH ( 2.4 LPH )
  • Built-in stainless steel filter 40 μm
  • Atomizing orifice diameter (each head): 85 μm
  • Droplet size: 10...30 μm
  • Anti-drip valve
  • Control voltage: 20...24 VDC
  • Intermediate tube's length: 26 in
  • Each fogging head size DxL, in (mm): 0.55 x 1.42 ( 14 x 36 )
  • Material: body - stainless steel, fogging insert - ruby

Advantages:

  • NEW! Absolutely silent electromagnetic high-pressure TWINCOIL valve
  • NEW! Entirely flow-through construction, no stagnant zones
  • Fogging head's silent operation
  • Anti-drip valve
  • High capacity filter
  • Long life thanks to ruby insert
  • Less visible installation due to the built-in construction



Active nozzle SAN3

Capacity is 0.9 GPH

Buhler-AHS Active nozzle SAN3

Key Features:

  • Capacity: 0.9 GPH ( 3.5 LPH )
  • Built-in stainless steel filter 40 μm
  • Atomizing orifice diameter: 200 μm
  • Droplet size: 15...40 μm
  • Anti-drip valve
  • Control voltage: 20...24 VDC
  • Intermediate tube's length: 26 in
  • Fogging head size DxL, in (mm): 0.5 x 1.2 ( 12 x 30 )
  • Material: body - stainless steel, fogging insert - ruby


Advantages:

  • NEW! Absolutely silent electromagnetic high-pressure TWINCOIL valve
  • NEW! Entirely flow-through construction, no stagnant zones.
  • Fogging head's silent operation
  • Anti-drip valve
  • High capacity filter
  • Long life thanks to ruby insert
  • Less visible installation due to the built-in construction

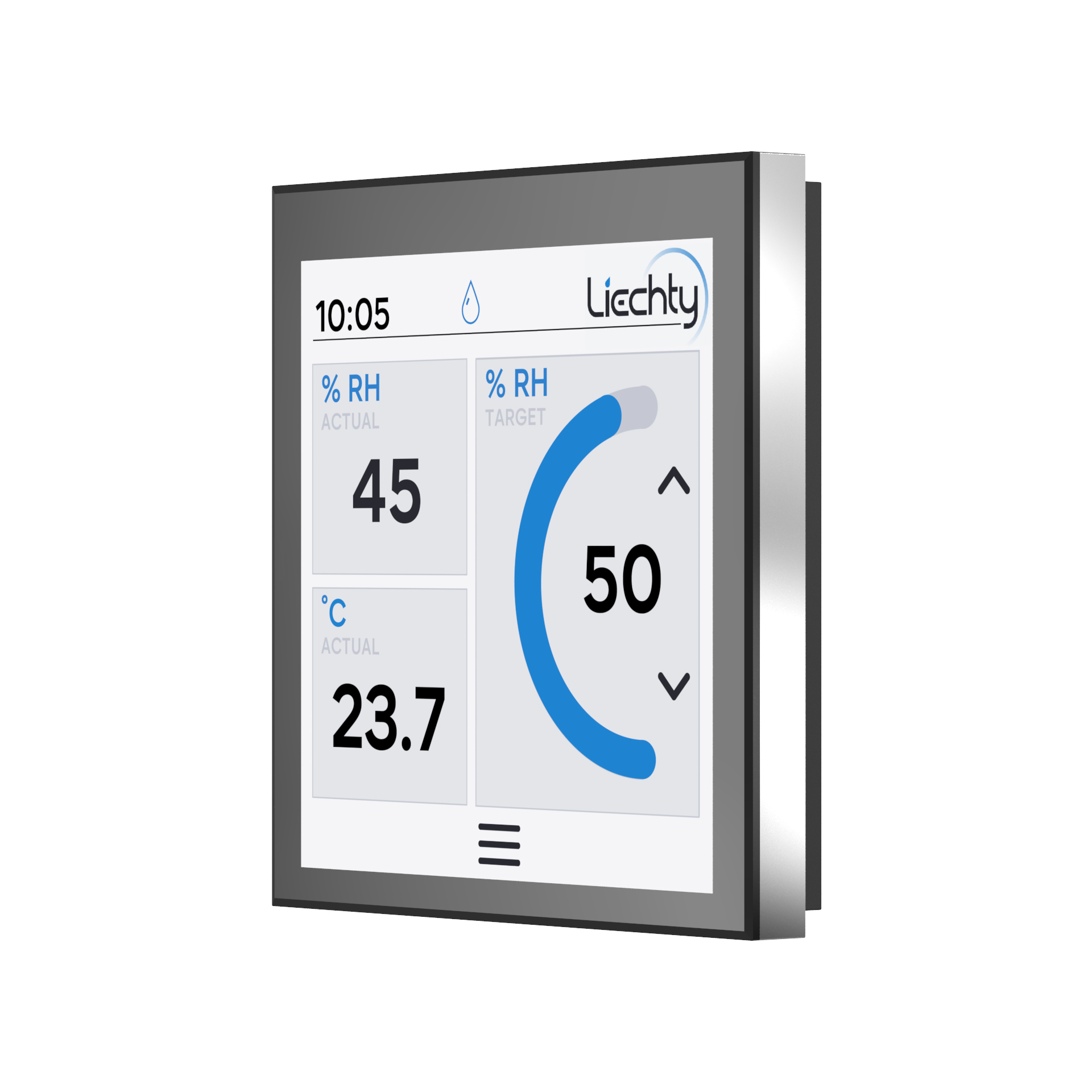

Control panel HS2

With touchscreen

Buhler-AHS Control panel HS2

Key Features:

  • Number of separately controlled zones of humidification: 1
  • Control range of RH: 5...55%
  • Accuracy of RH regulation: ± 3% ( 20...55% range )
  • Supply voltage: 20...24VDC ( powered by MZC10RF )
  • Housing material: glass and high gloss plastic
  • Color of face plate: white (HS2W), black (HS2B)
  • Dimensions WxH, in (mm): 3.2 x 3.2 ( 80 x 80 )

Advantages:

  • NEW! Sensor display of high resolution
  • Electronic scheme maintains required relative humidity with high accuracy
  • Modern design, possible color selection
  • Ability to set operation schedule of humidification for the exact room

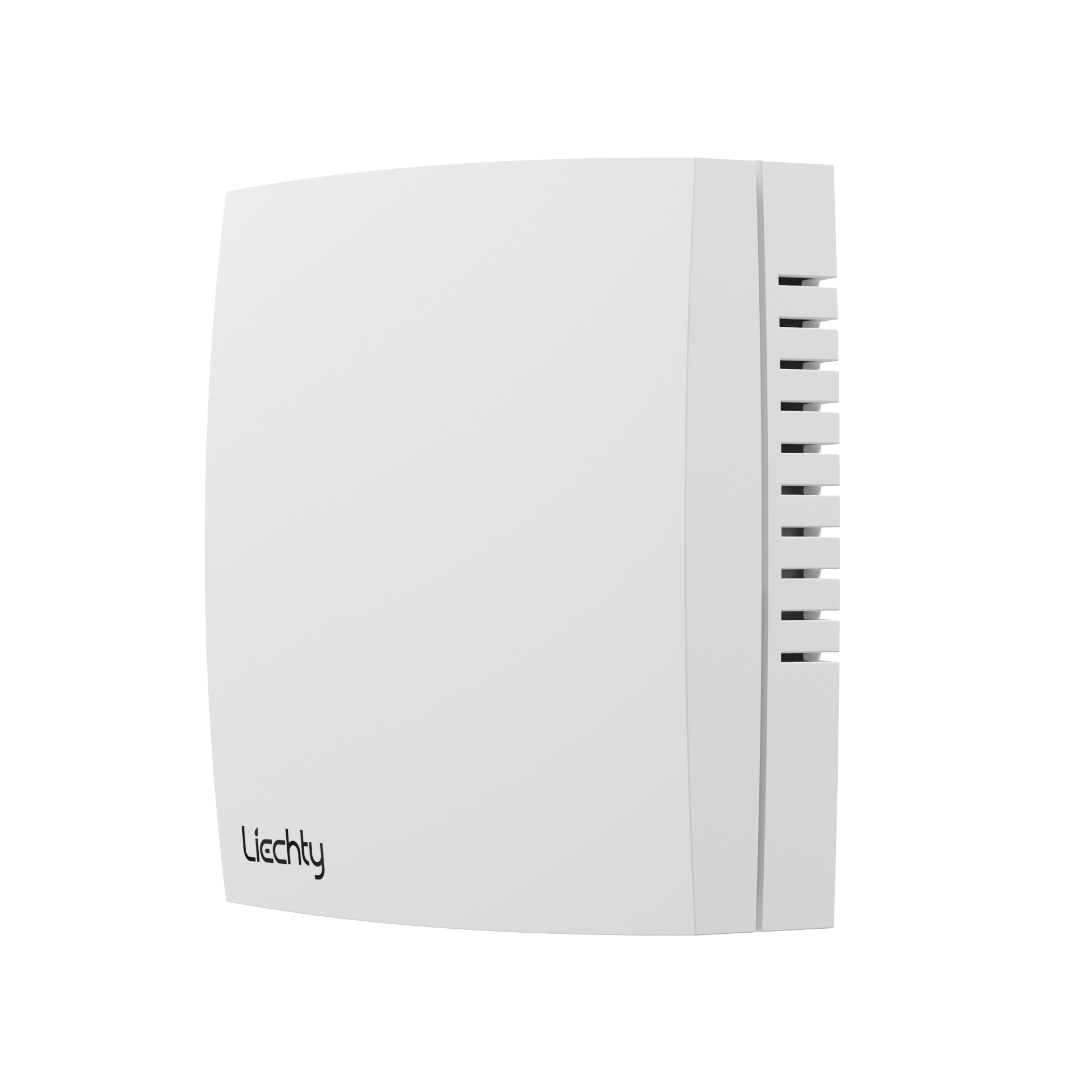

Maximum humidistat MHS1

Optional for HS1

Buhler-AHS Maximum humidistat MHS1

Key Features:

  • Protection threshold setting: 25...95%, preinstalled on 60%
  • Protection threshold accuracy: ± 5%
  • Housing material: high-quality matted plastic
  • Color: white, RAL 9010
  • Dimensions WxDxH, in (mm): 4.2 x 3.9 x 1.3 ( 106 x 98 x 34 )

Advantages:

  • Mechanical design, requiring no power
  • On-wall installation
  • Modern look



Main zone control unit Boson

Buhler-AHS Main zone control unit Boson

Key Features:

  • Control range of RH: 5...60%
  • Accuracy of RH regulation: ± 3%
  • Frequency range: 315 MHz
  • Line-of-sight wireless range: up to 3000 ft
  • Accumulator life (without recharge): 6...7 months
  • Charger connector type: micro-USB
  • Housing material: high-quality plastic
  • Dimensions WxDxH, in (mm): 2.8 x 0.7 x 3.2 ( 72 x 18 x 82 )
  • Weight: 0.3 lb (130 g)
  • Color: white

Advantages:

  • High RF signal range, including operation through reinforced concrete walls
  • High measurement accuracy
  • Accumulator life up to half-year without recharge
  • Touch screen
  • Fast wall mounting



Additional zone control unit Shadow

Buhler-AHS Additional zone control unit Shadow

Key Features:

  • Control range of RH: 5...60%
  • Accuracy of RH regulation: ± 3%
  • Frequency range: 315 MHz
  • Line-of-sight wireless range: up to 3000 ft
  • Accumulator life (without recharge): 6...7 months
  • Charger connector type: micro-USB
  • Housing material: high-quality plastic
  • Dimensions WxDxH, in (mm): 2.8 x 0.7 x 3.2 ( 72 x 18 x 82 )
  • Weight: 0.3 lb (130 g)
  • Color: white

Advantages:

  • Wide signal range, including operation through reinforced concrete walls
  • High measurement accuracy
  • Battery life up to half-year without recharge
  • Touch screen
  • Fast wall mounting

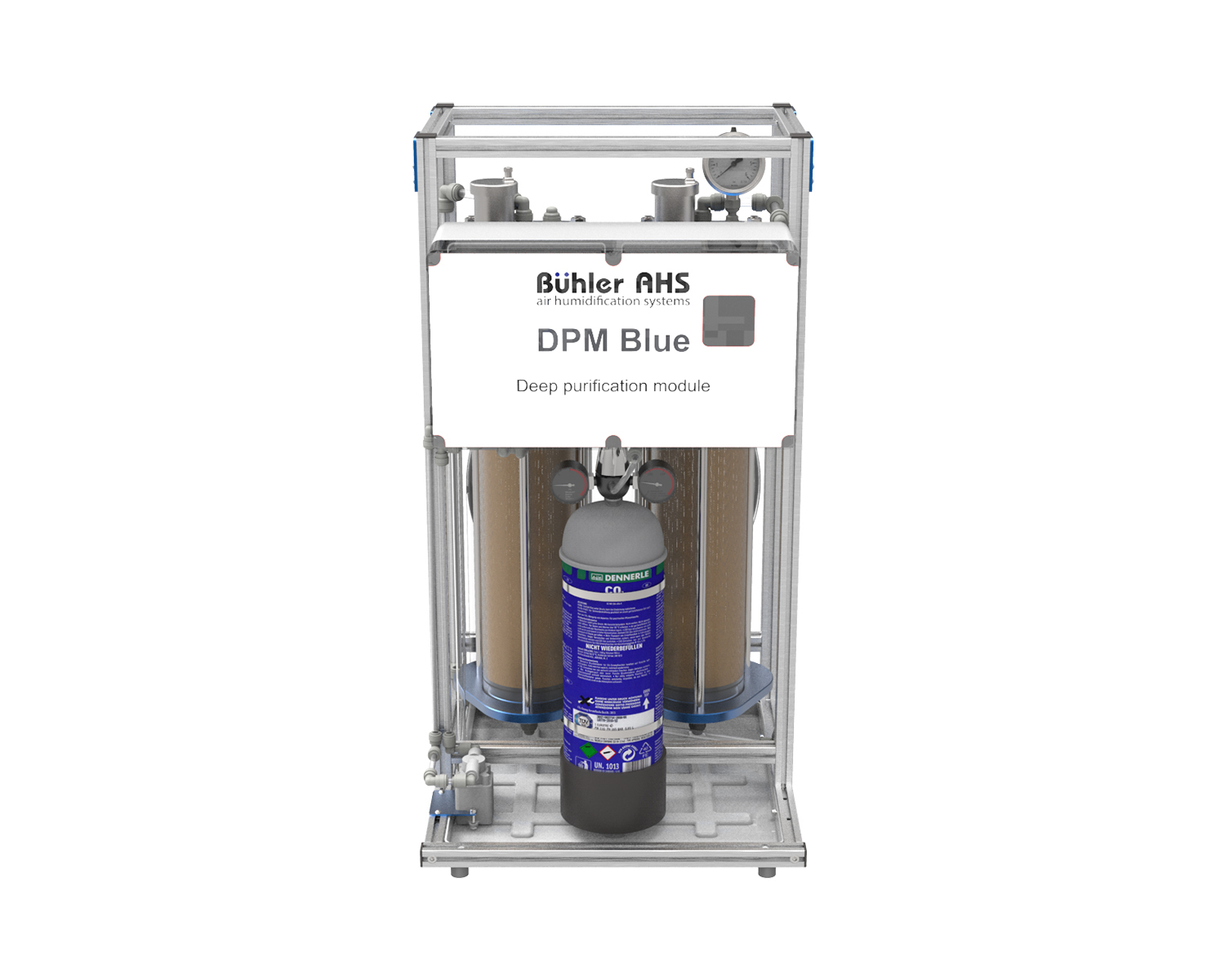

Ultradeep purification module DPM Blue

Optional for S18UV

Buhler-AHS Ultradeep purification module DPM Blue

Key Features:

  • Rated capacity: 3.2 GPH ( 12 LPH )
  • Maximum capacity: 4.4 GPH ( 17 LPH )
  • Maximum treated water purity: 0.1 μS/cm
  • Capacity (with the incoming water is 25 μS/cm): 7,400 gal ( 28,000 l )
  • Power consumption: 10 W
  • Voltage: 18 VAC
  • Housing and mechanical parts material: high quality aluminum
  • Dimensions WxDxH, in (mm): 16 x 17 x 29 ( 405 x 425 x 740 )

Advantages:

  • Highest degree of purification - up to 0.1 μS/cm
  • Built-in purity water analyzer, inlet and outlet
  • Visual monitoring of ion exchange resin
  • Silent operation, the device is suitable for mounting near living areas
  • Removing air bubbles
  • Completely automatic operation
  • Leakage control
  • Easy CO2 cylinder replacement
  • High ion exchange resin and CO2 cylinder capacity

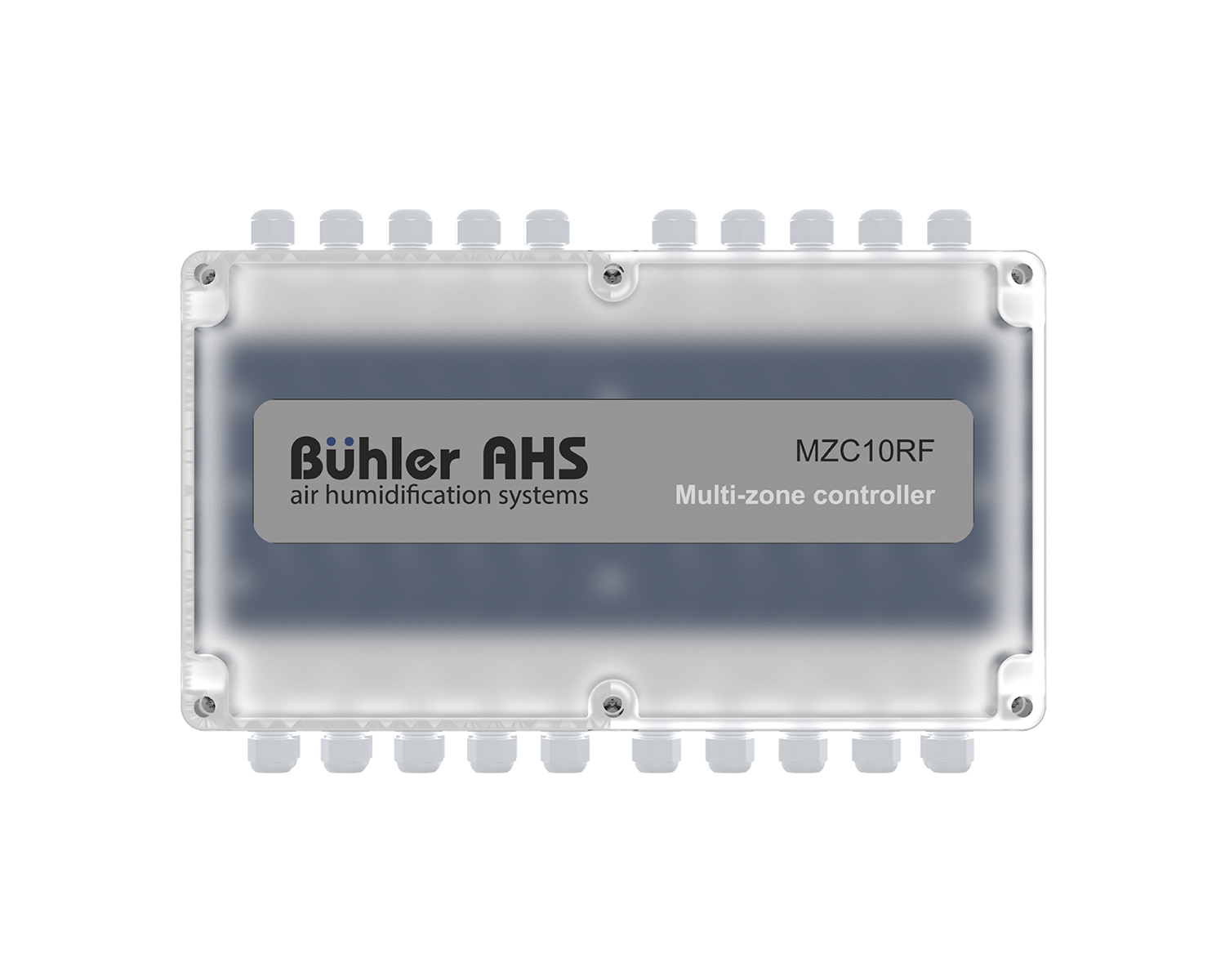

Multi-zone controller MZC10RF

For S18UV with wireless capability

Buhler-AHS Multi-zone controller MZC10RF

Key Features:

  • Number of separately controlled humidification zones: 10 (may be increased by cascading)
  • Number of receiving board slots: 10
  • Supply voltage for the valves and control panels: 20...24 VDC
  • Power consumption (including connected nozzles), max.: 110 W
  • Voltage: 20...24 VDC
  • Housing material: high-quality plastic
  • Dimensions WxDxH, in (mm): 14 x 6 x 7.8 ( 360 x 150 x 200 )
  • Color: light gray, transparent cover

Advantages:

  • Operates with both wired control panels and wireless control units in any combination
  • Provides power for wired control panels and nozzles
  • Provides nozzles' operating modes according to S18UV's mode
  • Allows to set the priority of the nozzles
  • Allows cascading to increase the number of humidification zones
  • Provides a link to BMS (alarm output)
  • Waterproof design

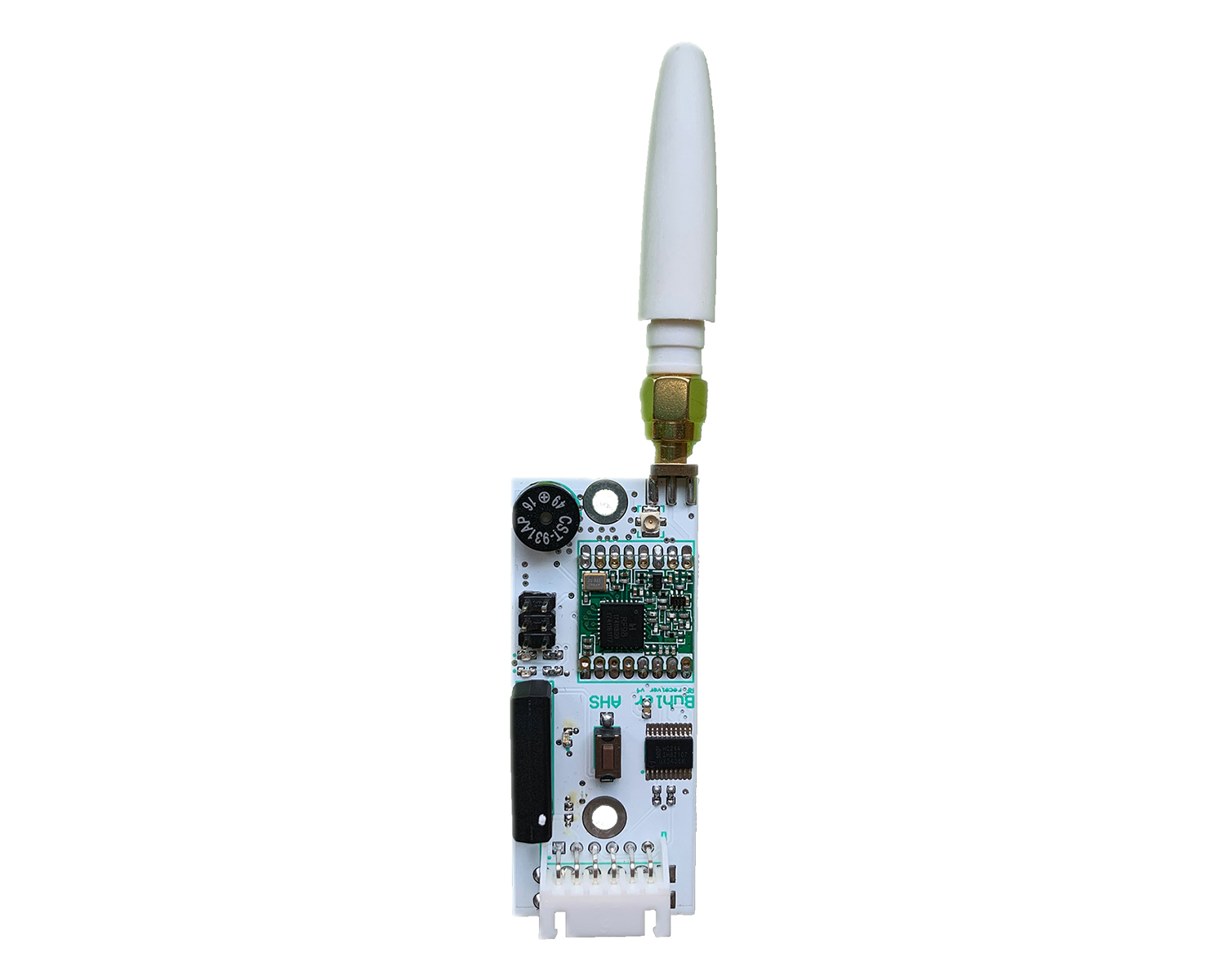

Receiving board RF Receiver

Optional for MZC10RF

Buhler-AHS Receiving board RF Receiver

Key Features:

  • Maximum number of paired Boson and Shadow control units: 16
  • Frequency range: 315 MHz
  • Line-of-sight wireless range: up to 3000 ft
  • Power supply (from MZC10RF's motherboard): 20...24 VDC
  • Dimensions WxH, in (mm): 1 x 2.8 ( 26 x 72 )

Advantages:

  • Wide signal range, including operation through reinforced concrete walls
  • Quick installation on MZC10RF's motherboard
  • Easy pairing with wireless control units

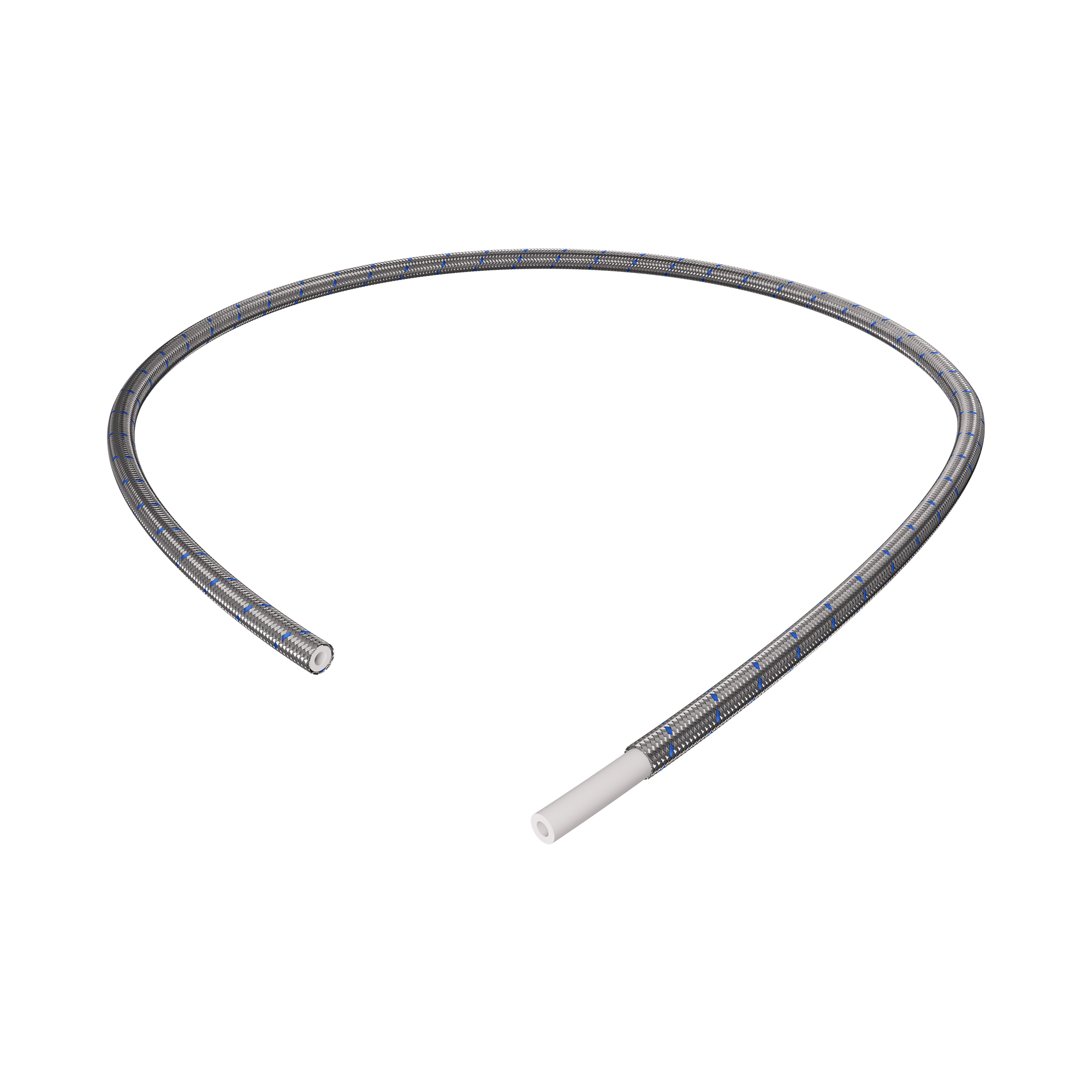

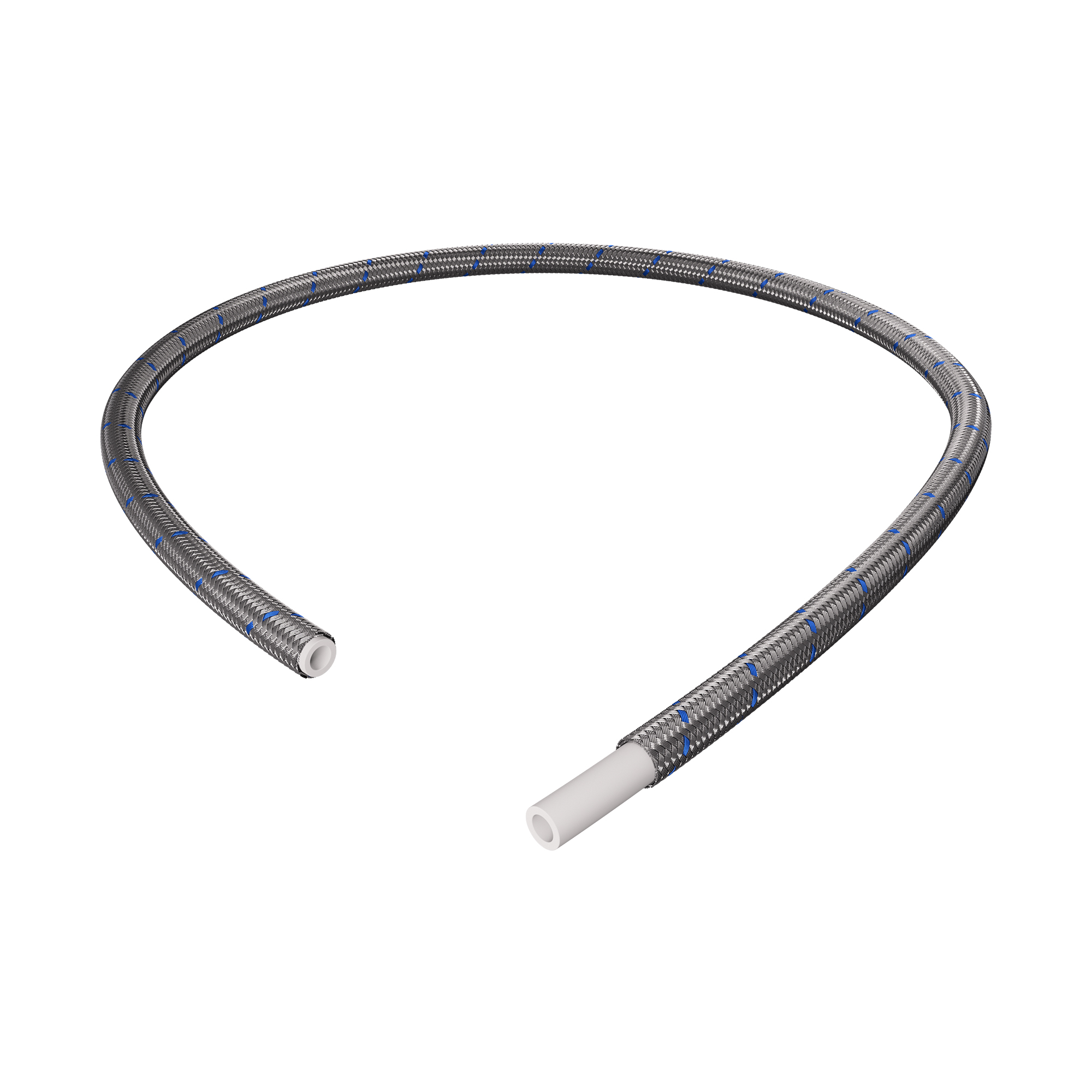

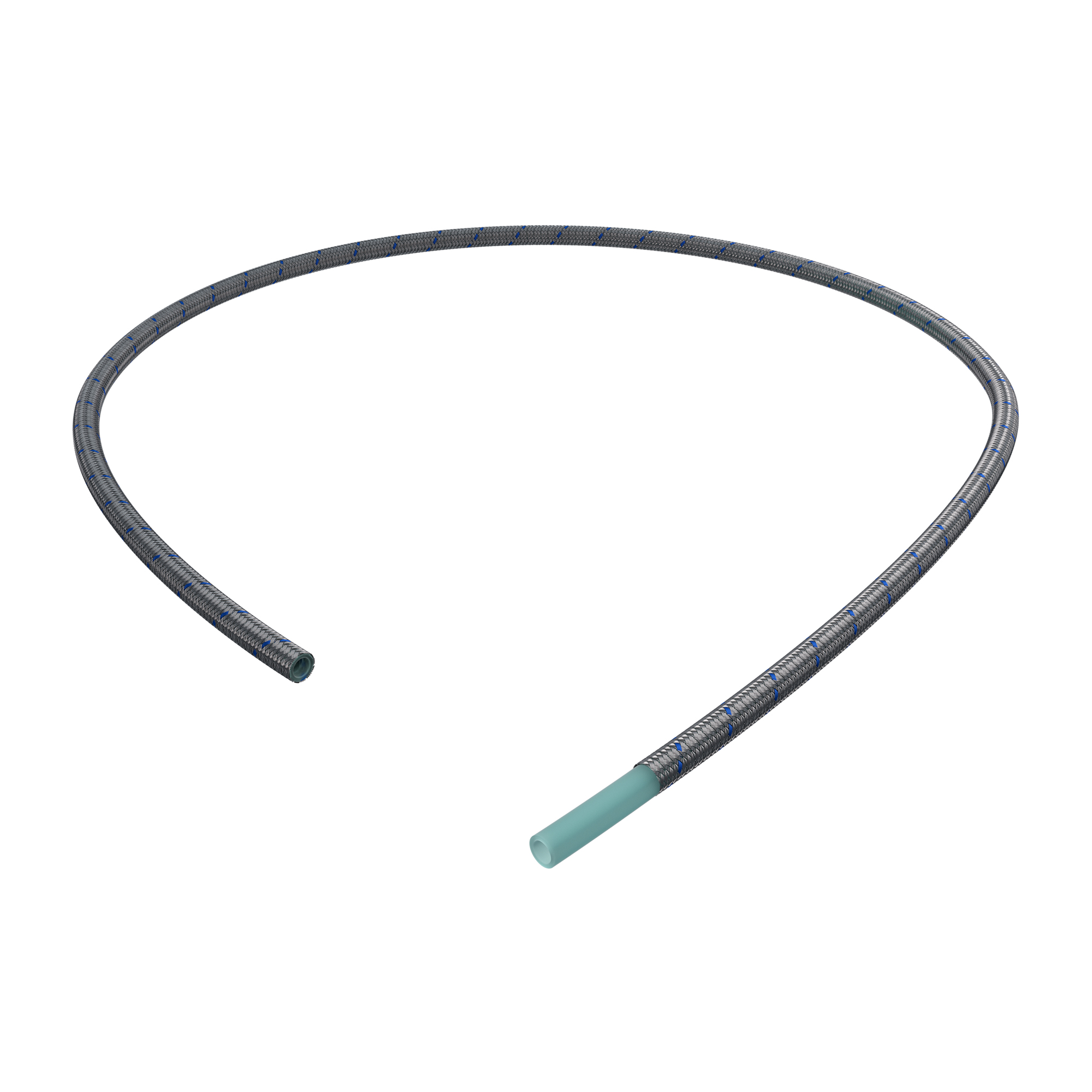

Reinforced high-pressure hose HPH04-PTFE STEEL THERMO, m

Buhler-AHS Reinforced high-pressure hose  HPH04-PTFE STEEL THERMO

Key Features:

  • Maximum operating pressure: 4000 psi ( 275 bar )
  • Burst pressure: 13800 psi ( 950 bar )
  • Conditional pass diameter: 5/32 in ( 4 mm )
  • Outer diameter: 9/32 in ( 7.2 mm )
  • Minimum bending radius: 1.6 in ( 40 mm )
  • Temperature range: +33 °F ... +500 °F ( +0 °C ... +260 °C )
  • Inner layer: PTFE
  • Outer reinforcing layer: high quality stainless steel

Advantages:

  • Chemically inert and low adhesion inner layer does not accumulate biofilms
  • Flexible and very elastic design simplifies installation, high resistance to mechanical damage
  • Large safety margin for maximum pressure
  • Small outer diameter for easy installation
